| TECHNICAL DATA | ING 80.500 |
| MAXIMUM LIFTING CAPACITY | 80.500 kgm |

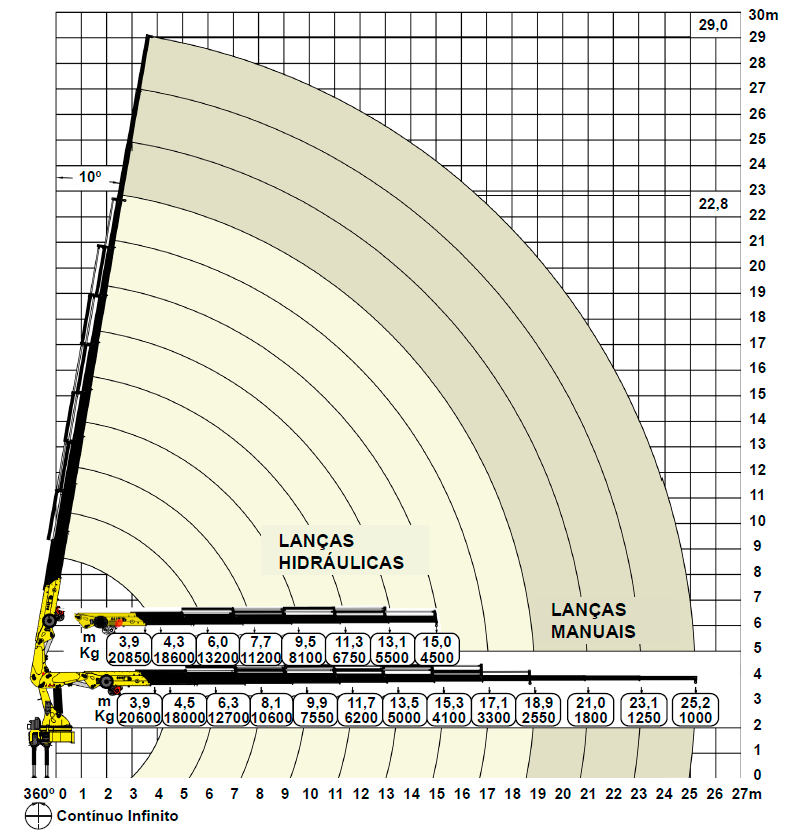

| VERTICAL MAXIMUM REACH FROM GROUND | 29,0 m |
| HORIZONTAL MAXIMUM REACH | 25,2 m |
| HYDRAULIC VERTICAL MAXIMUM REACH | 22,8 m |
| HYDRAULIC HORIZONTAL MAXIMUM REACH | 18,9 m |
| MAXIMUM ANGLE OF INCLINATION | 80° |
| SLEWING ANGLE | CONTINUOS |
| SLEWING TORQUE | 9,3 tm |
| TANK CAPACITY | 265 l |
| MAXIMUM OPERATING PRESSURE | 260 bar |
| STANDARD WEIGHT* | 8200 kg |
| FITTING SPACE REQUIRED | 1,9 m |
| EXTENDED FRONT STABILIZER | 8,0 m |
| NUMBER OF HYDRAULIC BOOMS | 8 |
| NUMBER OF MANUAL BOOMS OPTIONAL | 3 |
| GVW FOR ASSEMBLY | 29 Ton |
