| TECHNICAL DATA | ING 120.500 8H |
| MAXIMUM LOAD MOMENT | 120.500 kgm |
| MAXIMUM VERTICAL REACH (FROM GROUND) | 24.1 m |
| MAXIMUM HORIZONTAL REACH | 20.4 m |
| MAXIMUM HYDRAULIC VERTICAL REACH | 24.1 m |
| MAXIMUM HYDRAULIC HORIZONTAL REACH | 20.4 m |
| MAXIMUM ANGLE OF INCLINATION | 80° |
| SLEWING ANGLE | CONTINUOUS |
| SLEWING TORQUE | 9.3 tm |
| OIL TANK VOLUME | 370 l |
| WORKING PRESSURE | 325 bar |
| STANDARD WEIGHT* | 10,800 kg |

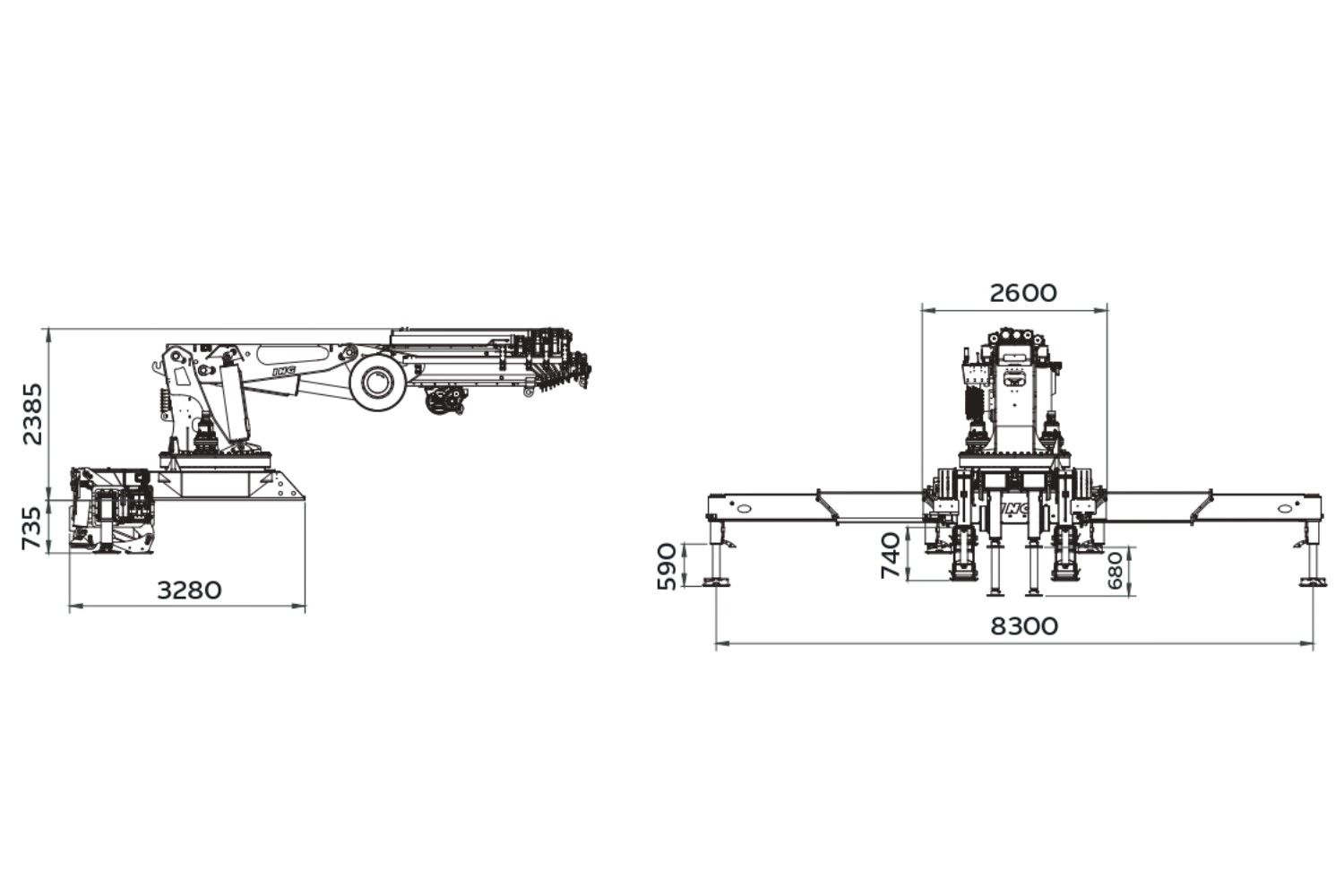

| SPACE REQUIRED FOR ASSEMBLY | 3.0 m |
| EXTENDED FRONT STABILIZER | 8.3 m |
| NUMBER OF HYDRAULIC BOOMS | 8 |
| NUMBER OF MANUAL BOOMS (OPTIONAL) | 0 |
| MINIMUM GVW FOR ASSEMBLY | 29 Ton |
