| TECHNICAL DATA | ING 45.500 |
| MAXIMUM LIFTING CAPACITY | 45.500 kgm |

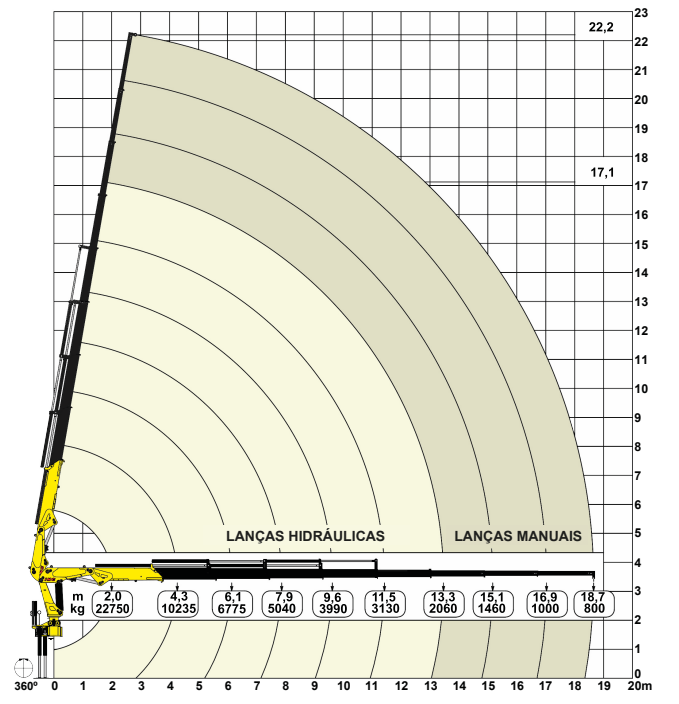

| VERTICAL MAXIMUM REACH FROM GROUND | 22,2 m |
| HORIZONTAL MAXIMUM REACH | 18,7 m |
| HYDRAULIC VERTICAL MAXIMUM REACH | 17,1 m |
| HYDRAULIC HORIZONTAL MAXIMUM REACH | 13,3 m |
| MAXIMUM ANGLE OF INCLINATION | 80° |
| SLEWING ANGLE | 360° |
| SLEWING TORQUE | 3,9 tm |
| TANK CAPACITY | 170 l |
| MAXIMUM OPERATING PRESSURE | 240 bar |
| STANDARD WEIGHT* | 3900 kg |
| FITTING SPACE REQUIRED | 1,2 m |
| EXTENDED FRONT STABILIZER | 6,0 m |
| NUMBER OF HYDRAULIC BOOMS | 5 |
| NUMBER OF MANUAL BOOMS OPTIONAL | 3 |
| GVW FOR ASSEMBLY | 23 Ton |
